Суичове

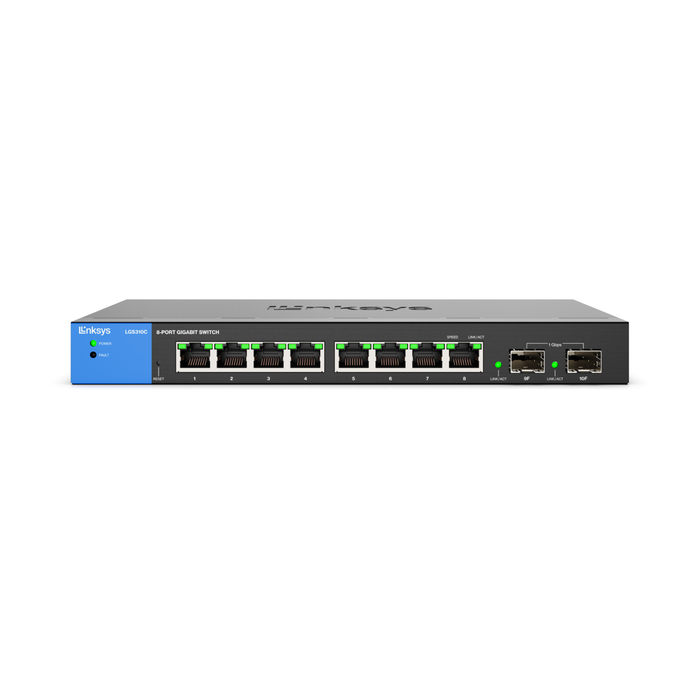

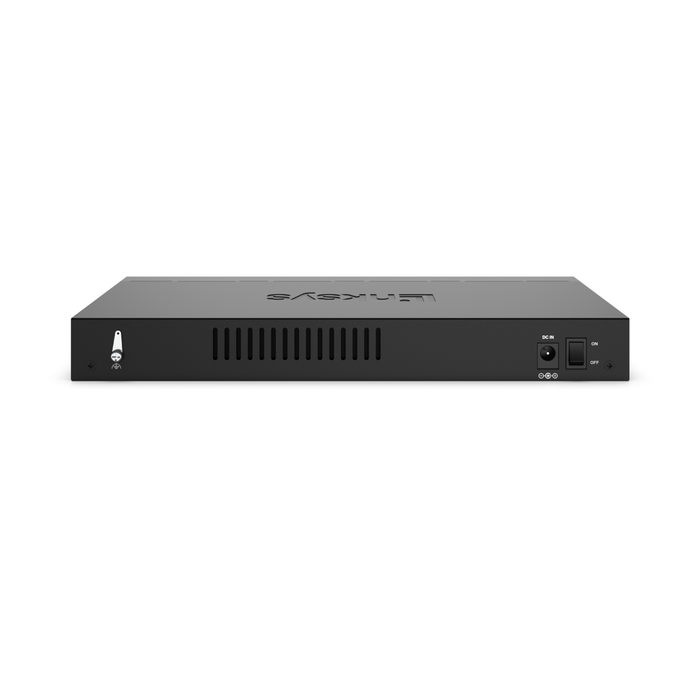

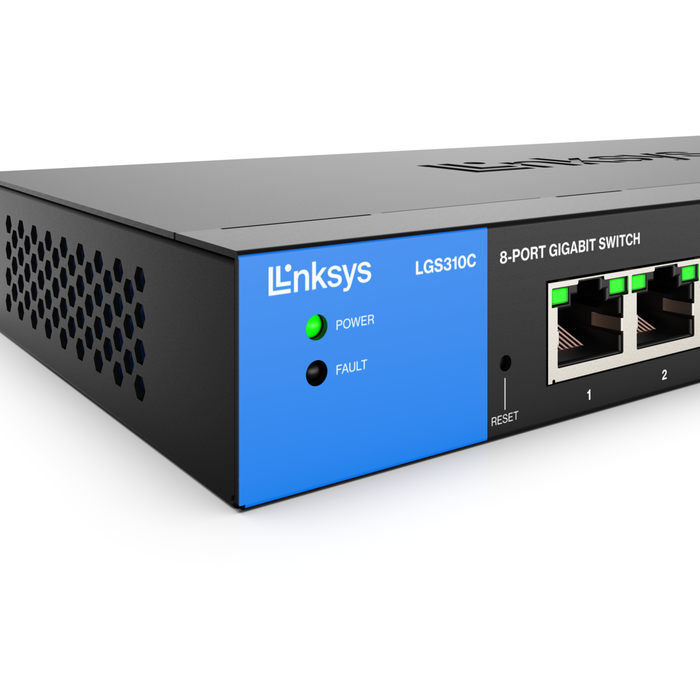

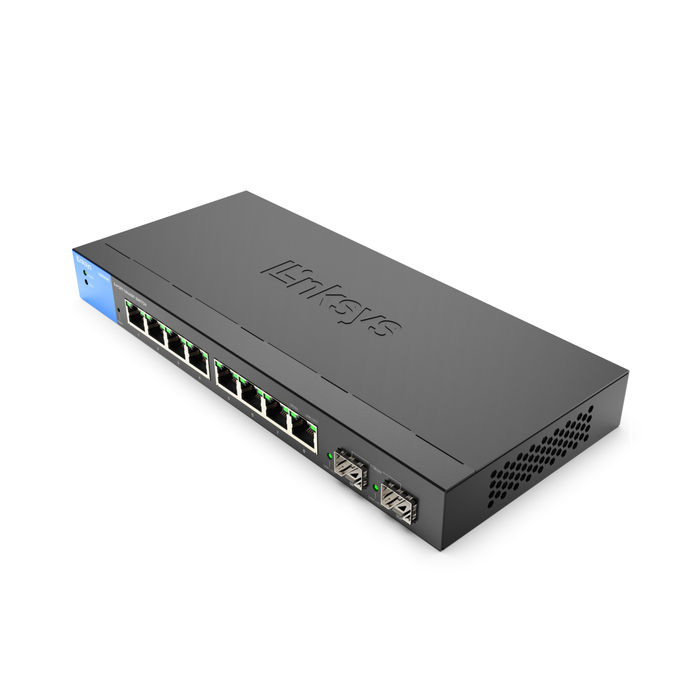

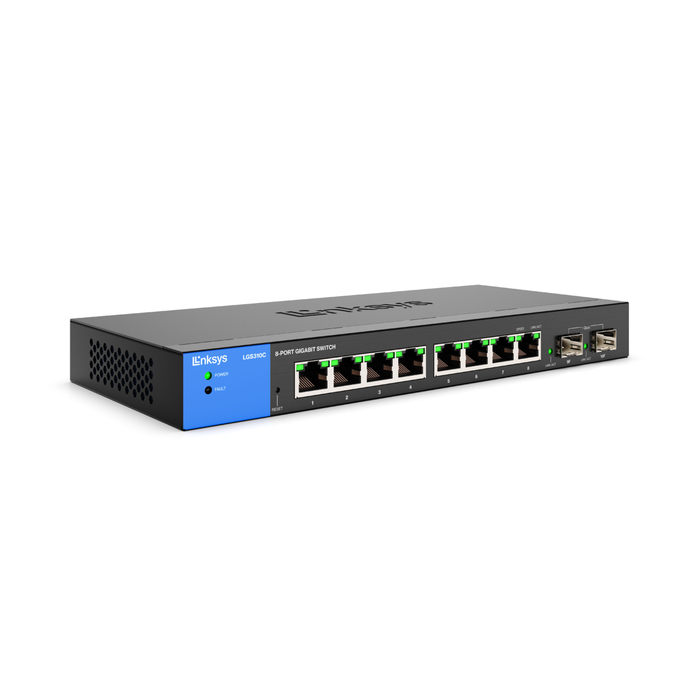

LINKSYS LGS310C :: 8-портов Managed Gigabit Switch, 2x SFP
;
Наличност:
Изчерпан
LGS310C е 8-портов управляем Gigabit суич с 2x SFP Uplinks.
Гигабитов комутатор с уеб интерфейс за конфигурация и управление
- 8 x Gigabit Ethernet auto-sensing порта
- 2 x SFP порта
- 128 активни VLANs, автоматични VoIP VLANs
- Поддържа Link Aggregation, IGMP Snooping, Head-of-line (HOL) blocking prevention, RMON Мониторинг, Port Mirroring
84.00 лв.
Изчерпан
LGS310C е 8-портов управляем Gigabit суич с 2x SFP Uplinks.
Гигабитов комутатор с уеб интерфейс за конфигурация и управление
- 8 x Gigabit Ethernet auto-sensing порта
- 2 x SFP порта
- 128 активни VLANs, автоматични VoIP VLANs
- Поддържа Link Aggregation, IGMP Snooping, Head-of-line (HOL) blocking prevention, RMON Мониторинг, Port Mirroring
| model: | LGS310C |
| Total System Ports: | 8GE + 2 SFP |
| Copper FE/GE Ports (RJ45): | Ports 1-8 |
| Ports SFP: | Ports 9-10 |
| Status LEDs: | System (blue/yellow), Link/Act(green) |
| CPU Memory DRAM: | 256MB |
| Power Input: | 12V/1A |
| Green Power Mode: | EEE |
| Max Power Consumption: | 6.54W |
| Forwarding Rate: | 14.88 Mpps |
| Switching Capacity: | 20 Gbps |
| MAC Address: | 8K |
| Jumbo Frame (FE, GE): | 10Kbytes |
|
Enclosure Dimension (L x H x W): |
240 x 105 x 27 mm |
| Device Weight: | 609 g (1.34 lb) |
| Operating Temperature: | 0 to 50°C (32 to 122°F) |
| Operating Humidity: | 10 to 90% RH |
| Storage Temperature: | -40 to 70°C (-40 to 158°F) |
| Storage Humidity: | 5 to 95% RH (non-condensing) |
| Standards: |
802.3 10Base-T Ethernet, 802.3u 100Base-T Fast Ethernet, 802.3ab 1000Base-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x Flow Control, 802.3ad, 802.1d STP, 802.1w RSTP, 802.1s MSTP, 802.1q VLAN, 802.1p Priority QoS, 802.1x Port Access Authentication, 802.1ab Link Layer Discovery Protocol, 802.3az Energy Efficient Ethernet |
| Spanning Tree: | IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances) |
| Link Aggregation: | IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group |
| VLAN: | Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support |
| Number of VLANs: | 256 active VLANs (4,096 range)) |
| Auto Voice VLAN: | Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels |
| IGMP Snooping | IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups |
| Head-of-Line (HOL) Blocking: | Head-of-line (HOL) blocking prevention |
| Security: |
802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security supports limited dynamic lock and locked MAC address (256 max entries per port), DOS Attack Prevention, Port Isolation (Protected Ports)management access control |
| Storm Control: | Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps |
| QoS – Priority Levels: | 8 hardware queues |
| QoS – Class of Service: | Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based |
| QoS – Scheduling: | Priority queuing and weighted round robin (WRR) |
| RMON: | Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis |
| Port Mirroring: | Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer |
| Management Interface: | Built-in Web UI for easy browser-based configuration (HTTP/HTTPS) |
| Other Management: | Telnet (menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP |
| SNMP: | Version 1, 2c and 3 |
| Тегло | 0.609 кг |
|---|---|
| Производител | |
| Интерфейс | Gigabit |
| Параметри Switch | 4-8 порта, L2 Managed, VLAN, SFP |
От 0 ревюта
За да публикувате ревю за продукта, първо трябва да го закупите.
